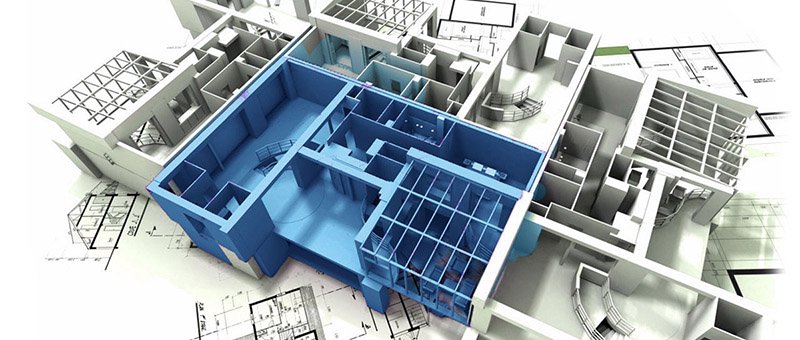

Oversee the production of project building information models which contain 3D visualisations and bring together data, drawings and schedules associated with the design and construction phase of a project.

The intent of the BIM Execution Plan (BEP) is to define a foundational framework to ensure successful deployment of advanced design technologies on your BIM enabled project. The BEP is about optimizing work and model flow across the project, as contrasted with optimizing siloed interests.

BIM makes it possible to create detailed clash reports during the design stage itself. Modern 3D graphics truly made the clash detection process streamlined and full-proof. Architects and designers can now detect clashes during the earliest stages of design.

We will take the mechanical contract documents and turn them into installable shop drawings. Even without full BIM support we will ensure drawings are clash free of structure and architecture as well as any other trades we are drawing for the project.

We will take the electrical contract documents and turn them into installable shop drawings. Even without full BIM support we will ensure drawings are clash free of structure and architecture as well as any other trades we are drawing for the project.

We will take the plumbing contract documents and turn them into installable shop drawings. Even without full BIM support we will ensure drawings are clash free of structure and architecture as well as any other trades we are drawing for the project.

As an additional service we can place and coordinate hangers for each trade we draw. We have a wide variety of supports available and can add any specialty supports as the project requires.

As an additional service we offer points for a Trimble like system in TXT format. These can be for penetrations, pad layouts, hanger location, or anything else that requires pin point accuracy as to their location.
